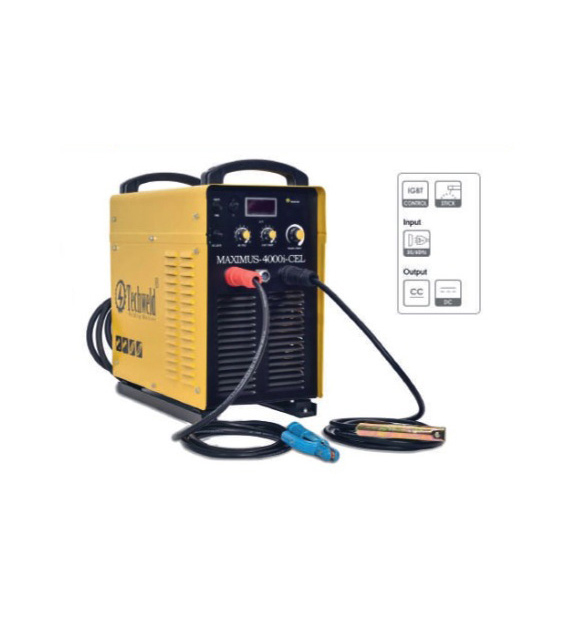

Maximus - 4000I - CEL

MAXIMUS – 4000I - CEL is specially designed for MMA welding with cellulose electrodes (CEL) this series is suitable for working under harsh industry field, special inner structure with optimum dust/water protection to ensure the robust design and usage for welding.

Features
  • Type - Stick Welder
  • Process - MMA/CEL, - MMA/Lift Tig
  • Cutting & Heating - Power Source
  • Hot start ignition
  • Wire remote control (optional)
  • Suitable for long distance welding
  • Adjustable arc force bring great performance for all position welding
  • Extra arc force current ensure deep penetration & bring perfect vertical down-welding of cellulose electrodes (CEL)
  • Digital display and heavy duty
  • Ordering Information:-ART NO: 30WM-MMA-MM400i
Technical Data
Input Voltage (V) 415V Efficiency 89%
Input Capacity (KVA) 36 Cos ø 0.95
Input Current (A) 37.5 Protection Class IP21S
Duty Cycle (40°) 60%@400A Insulation Class H
OCV (V) 84 Dimension 576*297*557
Output Current Range (A) 20 - 400 Weight (Kg) 43
Optional Accessories
  • Earth Clamp
  • Cable Connector
  • Electrode Holder
  • Electrode Oven
