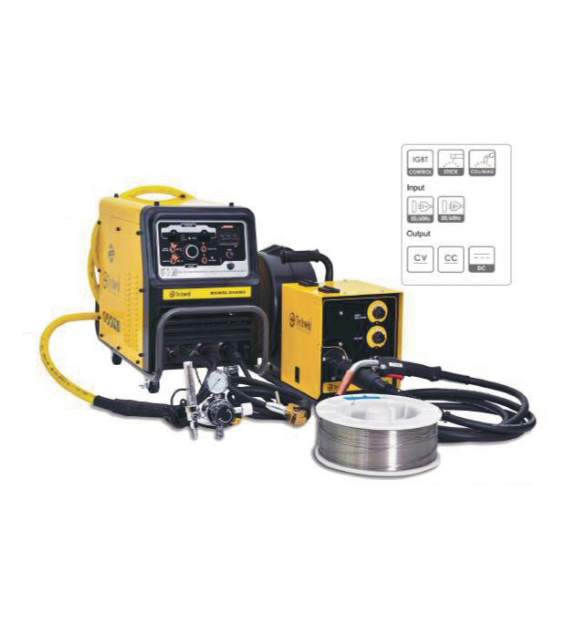

Migwel - K400HD

MIGWEL – K400HD is full digital control and user friendly interface all welding process is possible in after one installation it’s energy saving and high efficiency by IGBT inverter control technology additionally it’s controlling the amount of spatter.

Features
  • Type - Multi Welder
  • Process - MIG /MMA/TIG
  • Cutting & Heating - Power Source
  • Rectangle heat sink and three cooling fans delivers high durability
  • Energy saving and high efficiency by IGBT
  • Low spatter with Stable Arc Control
  • Over load and over current protect fucntion
  • Over voltage and low voltage protection function
  • Multi voltage
  • Ordering Information:-ART NO: 30WM-MIG-K400HD
Technical Data
Input Voltage (V) 220V/380V/440V Wire Size (MM) 0.9 – 1.2
Input Capacity (KVA) 17.5 Protection Class IP23H
OCV (V) 63 Insulation Class F
Output Current Range (A) 50 - 350 Dimension 350*720*530
Output Voltage (V) 16 - 35 Weight (Kg) 46
Duty Cycle 60%
Optional Accessories
  • Mig Torch (PSF405-5)
  • Mig Torch (NT4-15E)
  • Mig Torch (N40-5)
  • Mig Torch (NQ400-EURO)
