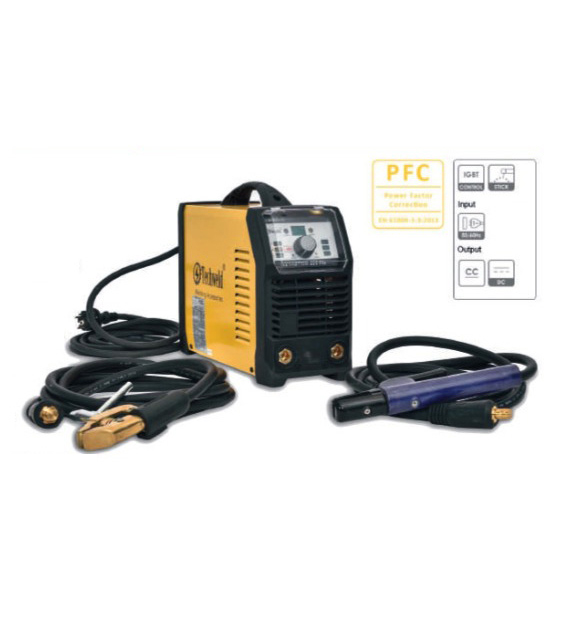

Novastick 205 PFC

Novastick 205 with PFC represent the right answer to market needs, solid and light but very reliable and equipped with electronics that allow control of the wave form and a significant reduction in power absorbed by the generator called PFC ( Power Factor Control).

Features
  • Type - Stick Welder
  • Process - DC Stick (SMAW)/Lift Tig
  • Cutting & Heating - Power Source
  • MMA/ DC Lift tig, Hot start ignition
  • Anti-Stick, Digital Display, Adaptive arc force
  • High efficiency, Easy Arc starting Minimal spatter.
  • Power saving, IGBT technology.
  • Smooth arc control, Heavy duty
  • Power factor correction
  • Ordering Information:-ART NO: 30WM-MMA-INT205, Standard: EN 60974-1
Technical Data
Input Voltage (V) 230V Efficiency 85%
Input Capacity (KVA) 9.4 Power Factor 0.9
Input Current (A) 32 Protection Class IP23
Duty Cycle (40°) 35%@ 200A Insulation Class AF
OCV (V) 70 Dimension 360*166*278
Output Current Range (A) 10 - 200 Weight (Kg) 6.1
Optional Accessories
  • Tig Torch (AWP26V)
  • Argon Regulator
  • Cable Connector
  • Welding Cable
