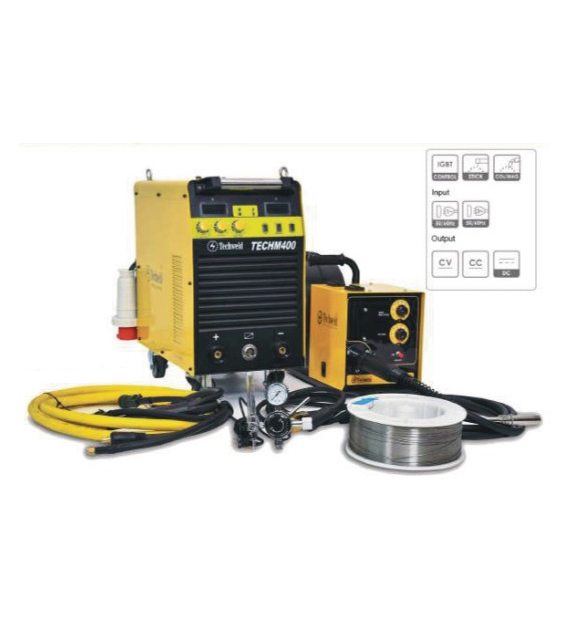

Tech M400

TECH M400 is full digital control and user friendly interface. MMA & MIG/MAG welding process is possible in after one installation. IGBT technology providing the energy saving and high efficiency closed loop feedback control suitable for MS, SS & AI.

Features
  • Type - Multi Welder
  • Process - MIG/MMA/ Lift Tig
  • Cutting & Heating - Power Source
  • High strength & light weight which leads improved mobility
  • Stepless voltage and feeder mounted remote to control welding voltage and wire feed speed
  • High efficiency 85% & high power factor (0.93)
  • Protection against thermal overloading, voltage fluctuations.
  • Closed loop feedback control, latest IGBT inverter technology
  • Voltage tolerance and easy to use control panel
  • Ordering Information:-ART NO: 30WM-MIG-400
Technical Data
Input Voltage (V) 215V Efficiency 85%
Input Capacity (KVA) 15.5 Power Factor 0.9
Input Current (A) 35.4 Protection Class IP23
Duty Cycle (40°) 60%@400 Insulation Class H
OCV (V) 60 Dimension 372*220*150
Output Current Range (A) 50 - 400 Weight (Kg) 45
Optional Accessories
  • Mig Torch (PSF405-5)
  • Mig Torch (NT4-15E)
  • Mig Torch (N40-5)
  • Mig Torch (NQ400-EURO)
