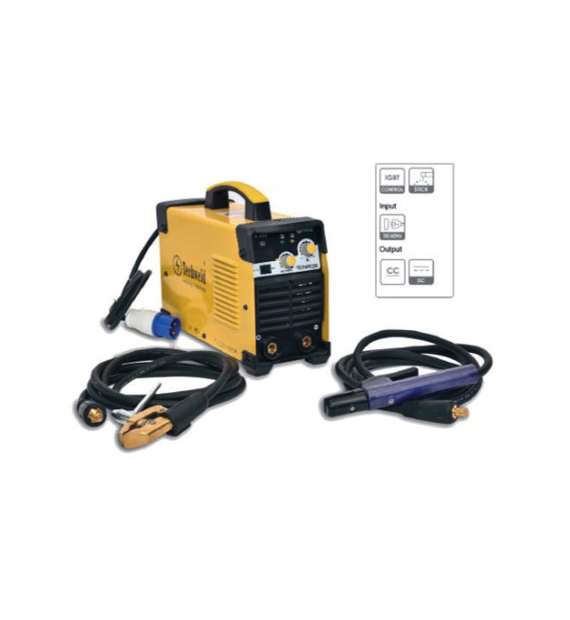

Techarc 200

TECHARC 200 represent the right answer to the market needs, solid, light and very reliable, Techarc 200 can use both rutile and basic electrodes and the high adjustment range allows you to safely center the desired welding parameter.

Features
  • Type - Stick Welder
  • Process - DC MMA/Lift Tig
  • Cutting & Heating - Power Source
  • MMA/ DC Lift tig, Hot start ignition
  • Anti-Stick, Adaptive Arc force
  • High efficiency, Easy arc starting Minimal spatter.
  • Power saving, IGBT technology.
  • Smooth arc control.
  • Digital display and Heavy Duty.
  • Ordering Information:-ART NO: 30WM-MMA-TA201
Technical Data
Input Voltage (V) 230V Efficiency >80%
Input Capacity (KVA) 7 Power Factor 0.7
Input Current (A) 29 Protection Class IP23
Duty Cycle (40°) 60%@ 200A Insulation Class F
OCV (V) 67 Dimension 372*220*150
Output Current Range (A) 10 - 200 Weight (Kg) 8.5
Optional Accessories
  • Tig Torch (AWP26V)
  • Argon Regulator
  • Cable Connector
  • Welding Cable
