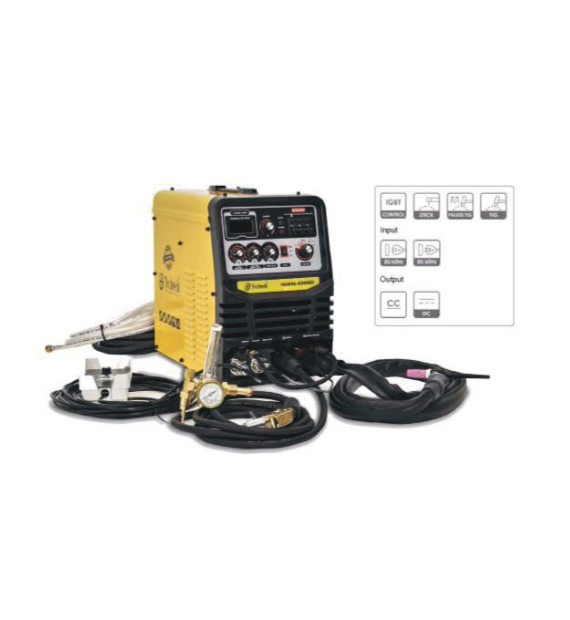

Tigwel - K300HD

TIGWEL – K300HD robust, built for heavy environmental conditions fully featured and user friendly control panel with digital display allows precise setting of welding curreny smooth start/restart of the electrode prevent sticking of the electrode in weld pool.

Features
  • Type - Tig/Stick Welder
  • Process - HF DC Tig, - MMA/Lift Tig
  • Cutting & Heating - Power Source
  • High durability and stability by patented transformer
  • Non contact arc start (HF start)
  • Crater ON/OFF, MMA function
  • Down slope still on during crater OFF
  • Multi voltage
  • Ordering Information:-ART NO: 30WM-TIG-K300HDPS-CS, - EN60974 : 2008
Technical Data
Input Voltage (V) 220V/380V/440V Insulation Class H
Input Capacity (KVA) 6 - 8 Dimension 290*490*435
OCV (V) 67 Weight (Kg) 24
Duty Cycle (40°) 50%
Output Current Range (A) 10 – 300@ Tig
20 – 300@ Stick

Protection Class IP23
Optional Accessories
  • Tig Torch (AWP26V)
  • Tungston Rod
  • Tig Consumables
  • Welding Cable
