Dependable Assortment of Standard & Customized Subsea Air Lift bags & inflatable buoyancy bags Available for Sale

Top Quality Crane Subsea Air Lift bags & inflatable buoyancy bags for Sale.Parachute Subsea Airlift Bags From 0.25MT to 50MT And Totally Enclosed Cylindrical bags From 1MT to 50MT. We have years of experience and a skilled team to understand and execute standard and customized solutions to all your requirements. We are committed to offering you the best quality at the most competitive price.

PARACHUTE SUBSEA AIRLIFT BAG

FULLY ENCLOSED SUBSEA AIRLIFT BAG

FULLY ENCLOSED CYLINDRICAL BAG

SINGLE POINT BOUYANCY POD

Parachute Subsea Airlift Bag (PSAB)

Wll: From 0.25MT to 50MT

Designed for safe subsea lifting and equipped with a single point attachment to the load-bearing webbing sling arrangement
Manufactured to FOS of 5:1 for the Airlift bag & FOS 7:1 for the Webbing Slings as per the requirements of IMCA D-016 Rev 4:2016
Bags are fitted with a top-mounted 3/4” inlet valve assembly and quick-release camlock coupling.
Top-mounted manual dump valve with a lanyard that can be operated from the bottom of the bag
Clearly labeled Inversion Line attachment point at the crown, with a minimum breaking force of 1.5 x the WLL of the airlift bag.
Fabricated from durable & UV-resistant 3 ply PVC fabric and RF welded seams for strength and integrity.
Supplied with User Manual and Logbook

SL NO.	MODEL	CAPACITY	INFLATED HEIGHT	INFLATED WIDTH	SMALL DUMP VALVE	LARGE DUMP VALVE	3/4" FILL/RELEASE VALVE
1	PSAB-0.1MT	100 KGS	125 CM	70 CM
2	PSAB-0.2MT	200 KGS	135 CM	85 CM
3	PSAB-0.25MT	250 KGS	145 CM	90 CM
4	PSAB-0.5MT	500 KGS	210 CM	125 CM
5	PSAB-1MT	1000 KGS	260 CM	145 CM
6	PSAB-2MT	2000 KGS	300 CM	175 CM
7	PSAB-3MT	3000 KGS	330 CM	210 CM
8	PSAB-5MT	5000 KGS	410 CM	225 CM
9	PSAB-10MT	10000 KGS	540 CM	275 CM
10	PSAB-15MT	15000 KGS	530 CM	335 CM
11	PSAB-20MT	20000 KGS	575 CM	370 CM
12	PSAB-25MT	25000 KGS	630 CM	385 CM
13	PSAB-30MT	30000 KGS	610 CM	405 CM
14	PSAB-35MT	35000 KGS	650 CM	420 CM
15	PSAB-50MT	50000 KGS	755 CM	500 CM

All dimensions are approximate and subject to change without prior notice

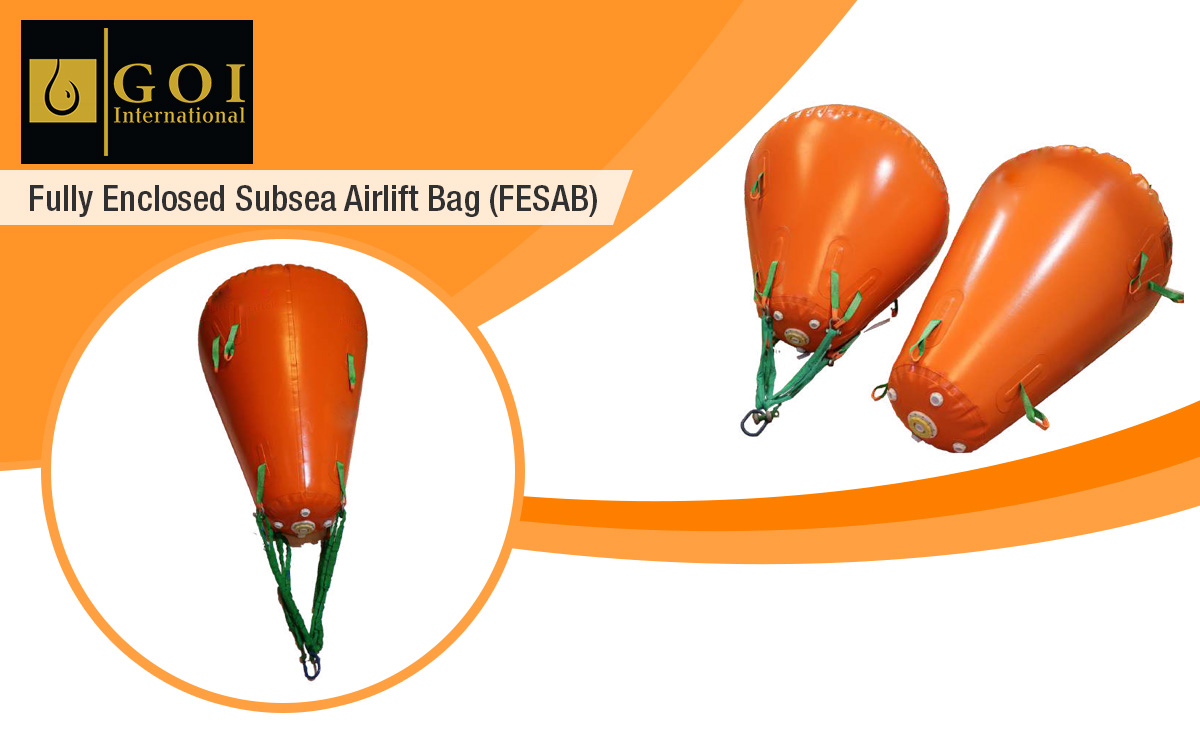

Fully Enclosed Subsea Airlift Bag (FESAB)

Wll: 0.1mt To 50mt

Perfect for lifting and buoyancy in shallow waters, slow towing, lowering draft, and surface flotation.
Manufactured to FOS of 5:1 for the Airlift bag & FOS 7:1 for the Webbing Slings as per the design requirements of IMCA D-016 Rev 4:2016
Bags are fitted with a top-mounted 3/4” inlet valve assembly and quick-release camlock coupling.
Bags are integrated with appropriate number of high-quality pressure relief valve for automatic venting.
Inflating and deflating the bags remotely enhances safety and expands the range of applications they can be used for.
Clearly labeled Inversion Line attachment point at the crown, with a minimum breaking force of 1.5 x the WLL of the airlift bag.
Fabricated from durable & UV-resistant 3 ply PVC fabric and RF welded seams for strength and integrity.
Supplied with User Manual and Logbook

SL NO.	MODEL	CAPACITY	INFLATED HEIGHT	INFLATED WIDTH	3/4" FILL/RELEASE VALVE
1	FESAB-0.1MT	100 KGS	125 CM	70 CM
2	FESAB-0.2MT	200 KGS	135 CM	85 CM
3	FESAB-0.25MT	250 KGS	145 CM	90 CM
4	FESAB-0.5MT	500 KGS	210 CM	125 CM
5	FESAB-1MT	1000 KGS	260 CM	145 CM
6	FESAB-2MT	2000 KGS	300 CM	175 CM
7	FESAB-3MT	3000 KGS	330 CM	210 CM
8	FESAB-5MT	5000 KGS	410 CM	225 CM
9	FESAB-10MT	10000 KGS	540 CM	275 CM
10	FESAB-15MT	15000 KGS	530 CM	335 CM
11	FESAB-20MT	20000 KGS	575 CM	370 CM
12	FESAB-25MT	25000 KGS	630 CM	385 CM
13	FESAB-30MT	30000 KGS	610 CM	405 CM
14	FESAB-35MT	35000 KGS	650 CM	420 CM
15	FESAB-50MT	50000 KGS	755 CM	500 CM

All dimensions are approximate and subject to change without prior notice

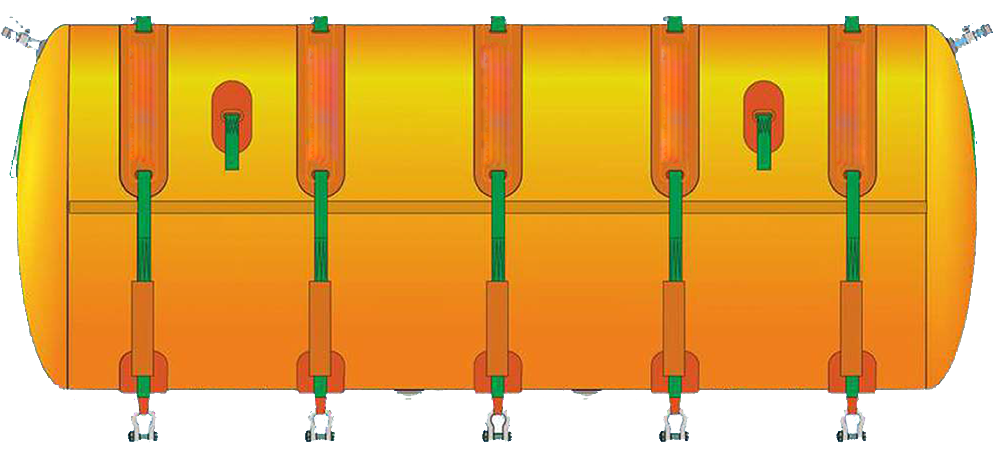

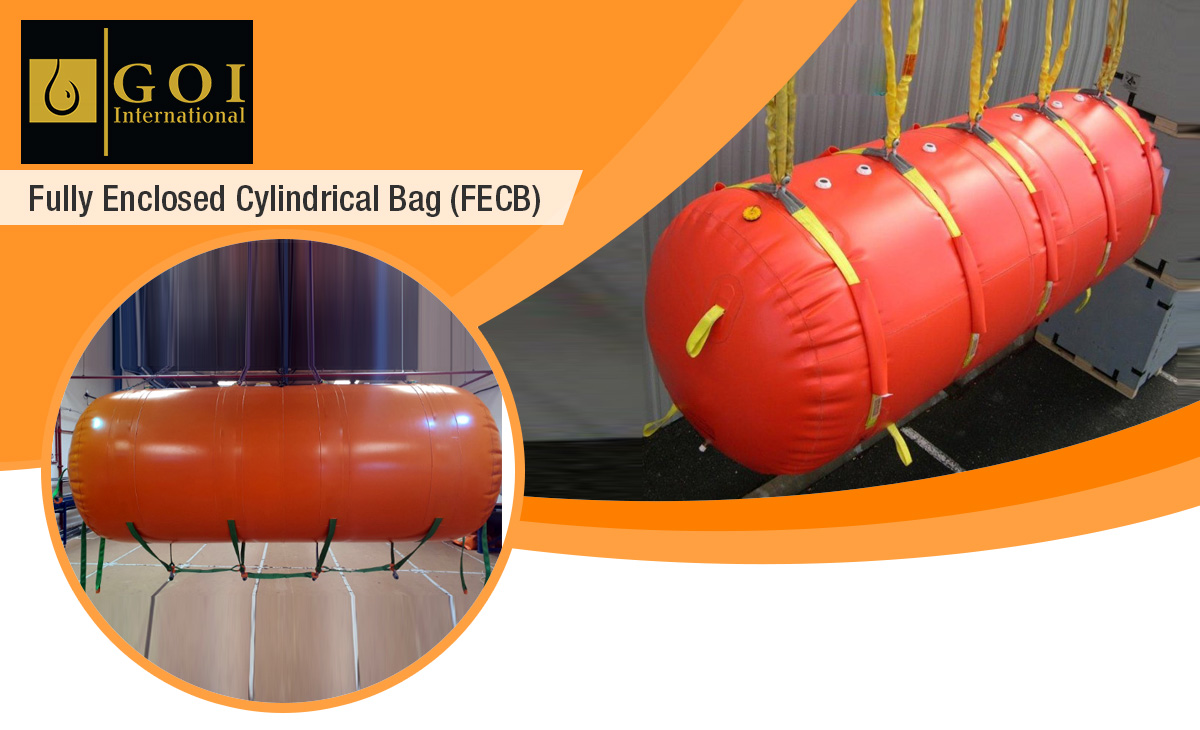

Fully Enclosed Cylindrical Bag (FECB)

Wll: From 1MT to 50MT

Suited for buoyancy and general lifting applications including shallow water and surface flotation and salvage, reducing draft of a vessel, and towing
Manufactured with UV-resistant and durable PVC-coated polyester fabric
HF Welded seams ensure high strength and integrity
Equipped with certified shackles and high tensile polyester webbing for stable lifting and flotation of even difficult-shaped objects
Fitted with suitable automatic air-relief valves and inflation/deflation ports.
Low maintenance and easy to clean
Meets relevant norms of IMCA D-016 Rev 4:2016 guideline
Comes with User Operational Manual and Log Book

MODEL	CAPACITY	INFLATED LENGTH	INFLATED HEIGHT	EMPTY WEIGHT
FECB-1MT	1 MT	210 CM	90 CM	21.5 KG
FECB-2MT	2 MT	220 CM	160 CM	38.5 KG
FECB-3MT	3 MT	265 CM	175 CM	44 KG
FECB-5MT	5 MT	380 CM	180 CM	70 KG
FECB-10MT	10 MT	465 CM	225 CM	120 KG
FECB-20MT	20 MT	640 CM	275 CM	175 KG
FECB-25MT	25 MT	670 CM	280 CM	198 KG
FECB-50MT	50 MT	800 CM	290 CM	420 KG

All dimensions are approximate and subject to change without prior notice

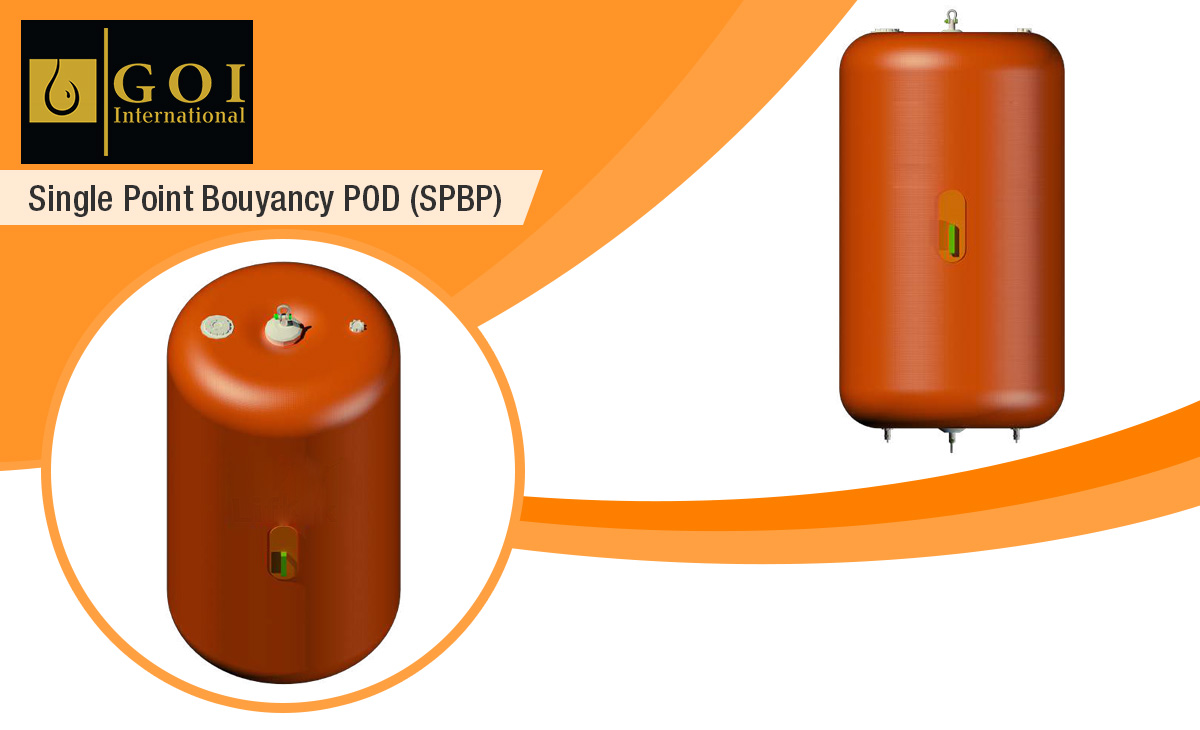

Single Point Bouyancy POD (SPBP)

Wll: 1mt To 5mt

SPBP is the perfect solution for providing buoyancy support for pipe-laying operations.
Designed and fabricated for withstanding “through-lifting” and asymmetric loading.
All the lifting components used in SPBP have a minimum FOS of 5:1
The buoyancy pod is fabricated with heavy-duty PVC fabric and has top and bottom stainless-steel lifting points fitted with a certified shackle.
The stainless steel lifting points are connected internally within the pod, using a synthetic sling.
SPBP comes equipped with filling/discharge ball valves and pressure relief valves.
Low maintenance and easy to clean
Meets relevant norms of IMCA D-016 Rev 4:2016 guideline

MODEL	CAPACITY	INFLATED DIAMETER	INFLATED HEIGHT
SPBP-1MT	1000 KGS	95 CM	200 CM
SPBP-2MT	2000 KGS	130 CM	200 CM
SPBP-3MT	3000 KGS	155 CM	220 CM
SPBP-4MT	4000 KGS	160 CM	270 CM
SPBP-5MT	5000 KGS	165 CM	315 CM

All dimensions are approximate and subject to change without prior notice

Main Features of Subsea Lifting & Bouyancy Bags

Meets the applicable design requirements of IMCA LR 007, IMCA D 016, Rev 5.
Minimum 7:1 FOS for Webbing Straps
Minimum 5:1 FOS for Lifting Set Of Bag
Heavy Duty PVC Coated Polyester, RF-Welded Fabric
Lifting Set proof-loaded 2 x WLL
Easy to repair

Applications

Salvage

Cable/Pipe Laying

Search & Rescue

Marine Research

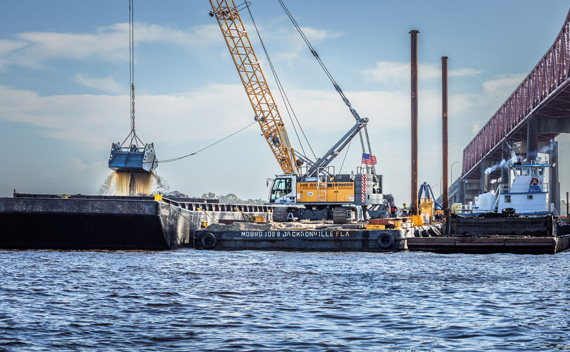

Dredging

Aquaculture
