TOYO manual lever block model TLB is for heavy duty use with long lasting reliability. High strength steel body and gear case are built to be durable for rugged needs of construction, mechanical and maintenance rigging. We have TLB with a lifting capacity of 500 kgs to 9,000 kgs. We use grade 80 alloy steel load chains. Made with Japanese design and technology, the guide plate helps to avoid slippage of load chain during usage versus the conventional guide rollers. The top hook is used to fix the hoist to the anchor point and bottom hook is the load hook used for pulling. Toyo lever hoist hooks are forged heat treated steel. They are used to pull and lift loads, handling of the product is simple, widely used for Positioning or Tensioning, Pulling and lifting of a load. The products are proof load tested and supplied with a test certificate and user manual.
The manual lever hoist is a hoist effectively used for lashing and tensioning. It is made of high quality material which is light weight and ensures reliability of the product. The lever hoist with its compact design and stamped steel construction is excellent for lifting and pulling. The asbestos free brake can hold load at any desired height. The short hand lever has a rubber grip. The top and bottom hooks are attached with safety latches as per standards. With the optimal gear ratio, only a slight effort is required to operate the hand lever. The load chain can be pulled freely and easily through the hoist in both directions to attach the load or to tension the chain. The lever hoist is fitted with high grade 80 alloy load chain. It also features heat treated hooks and drop forged steel suspension. The product complies with the EC Council Directive 2006/42/EC, Machinery.
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC. This document clearly states the proof test at 1.5 times the rated capacity and the light load test of 2% of the rated capacity, which exceeds the requirements of the current applicable standard.

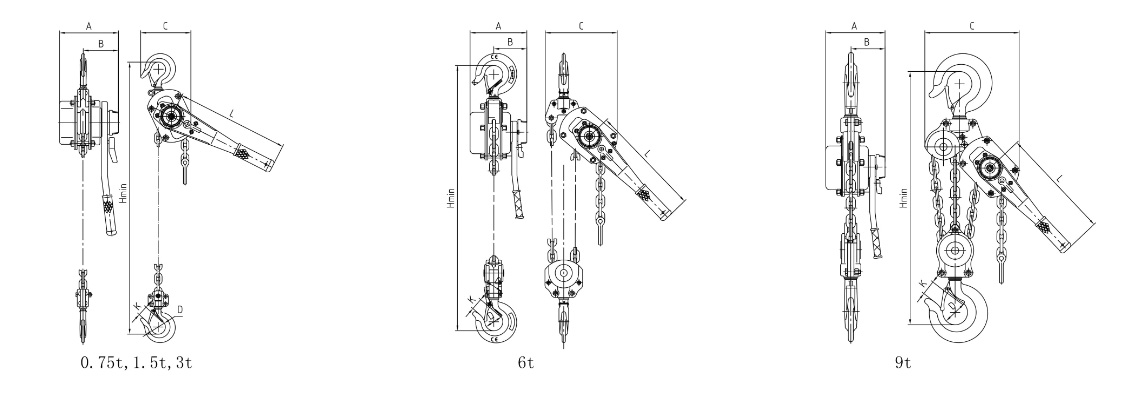

| TECHNICAL PARAMETERS | ||||||||
|---|---|---|---|---|---|---|---|---|
| MODEL | TLB -050 | TLB - 075 | TLB - 150 | TLB - 300 | TLB - 600 | TLB - 900 | ||
| Capacity | t | 0.5 | 0.75 | 1.5 | 3 | 6 | 9 | |
| Standard lift | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 3 | |
| Proof load | t | 0.75 | 1.125 | 2.25 | 4.5 | 9 | 13.5 | |
| Effort required to lift rated load | N | 300 | 140 | 240 | 320 | 340 | 360 | |
| No. of falls of load chain | 1 | 1 | 1 | 1 | 2 | 3 | ||
| Load chain | mm | 5x15 | 6x18 | 8x24 | 10x30 | 10x30 | 10x30 | |
| Dimensions (mm) | A | 105 | 148 | 176 | 195 | 195 | 195 | |
| B | 78 | 55 | 102 | 109 | 109 | 109 | ||
| C | 80 | 135 | 162 | 211 | 254 | 319 | ||
| D | 35 | 37 | 45 | 50 | 65 | 85 | ||
| Hmin | 270 | 320 | 380 | 480 | 620 | 700 | ||
| L | 300 | 290 | 420 | 420 | 420 | 420 | ||
| K | 30 | 26 | 32.5 | 37 | 46 | 50 | ||
| Net weight | kg | 3.7 | 8 | 11.8 | 21 | 32 | 47 | |
| Extra weight per meter of extra lift | kg | 0.52 | 0.8 | 1.4 | 2.15 | 4.3 | 6.45 | |

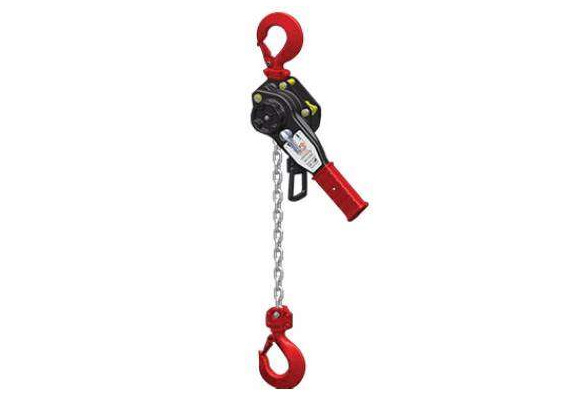

Toyolift manually operated lever hoists combine easy operation with a compact design, which can conveniently handle practical usage applications. Palan a levier manual. Capacity from 0.75 ton to 9 tons. It’s a popular choice by many rigging operators since these lever hoists can be used in all required appropriate load angle and have the durability to complete the task.The body cover uses curve design for better strength and durability. The plate finish is Electrophoretic painting which protects from moisture. Galvanized lifting chain can guarantee against rust and corrosion, it gives long durability. Key components like load bearing wheel and gear material are made of high tensile steel material. Drop forged hooks can swivel fully. Hook uses embedded design tip ensuring better safety. Overload device which protects from excessive overloads is available as optional feature. The product is supplied with all relevant certifications.

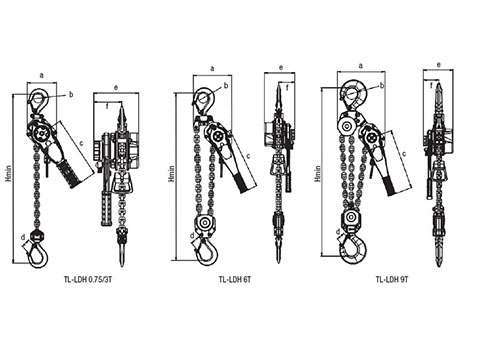

| LEVER HOIST [Model:TL-LDH] | ||||||
|---|---|---|---|---|---|---|
| MODEL | TL-LDH | TL-LDH075 | TL-LDH150 | TL-LDH300 | TL-LDH600 | TL-LDH900 |
| Safe Working Load | kg | 750 | 1500 | 3000 | 6000 | 9000 |
| Standard length | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Load chain number of falls | 1 | 1 | 1 | 2 | 3 | |
| Effort required to lift max load | N | 220 | 240 | 330 | 360 | 380 |
| Running test load | kg | 1125 | 2250 | 4500 | 9000 | 13500 |
| Load Chain Size | mm | 6x18 | 7.1x21 | 9x27 | 9x27 | 9x27 |
| Net weight | kg | 5.3 | 8.6 | 15.2 | 23 | 43 |
| G.w | kg | 5.6 | 8.9 | 15.6 | 23.5 | 44.5 |
| Packing Dimensions | cm | 31.5x16x12 | 35x18x13 | 48x20x13.5 | 48x21.5x17 | 53x28x25 |
| Extra Weight / meter of lifting | kg/m | 0.7 | 1.1 | 1.8 | 3.6 | 5.4 |
| Dimensions | a | 115 | 137 | 169 | 238 | 300 |
| b | 39 | 44 | 60 | 68 | 91 | |
| c | 239 | 259 | 374 | 374 | 374 | |
| d | 28 | 32 | 41 | 47 | 61 | |
| e | 146 | 162 | 187 | 187 | 187 | |
| f | 91 | 95 | 98 | 98 | 98 | |
| Hmin | 320 | 360 | 431 | 500 | 635 | |
