Customized Manufactured Round Sling,Polyester Webbing Sling,Endless Sling & Special Purpose Slings to Suit Industry Specifications by Our Trained Workforce

Top Quality Webbing Slings Endless Round Slings & Ultra High Molecular Weight Polyethylene UHMWP Special Round Slings. We have years of experience and a skilled team to understand and execute standard and customized solutions to all your requirements. We are committed to offering you the best quality at the most competitive price.

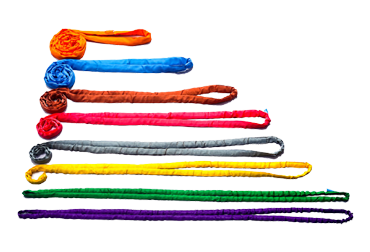

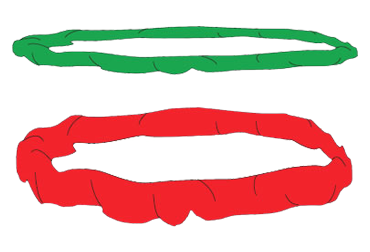

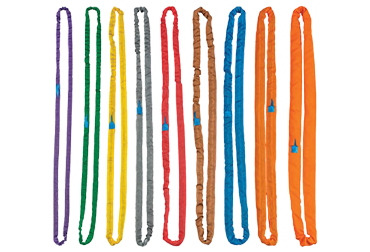

Round Slings

Round Slings are an endless loop of yarns, covered by a woven tubular jacket. A round sling is a preferable option if you have to lift a load exceeding 6 tonnes. All of the load-bearing polyester yarns in the round slings have a protective polyester sleeve, ensuring product durability and safety when lifting heavy loads. Each of our round slings has a different weight capacity as per Lifting Pattern, so make sure you're ordering the correct product for the weight limit you require to avoid any potential risks.

CAPACITY CHART in KGS for ROUND SLINGS

Color Code	Straight Lift - 100%	Choker Lift - 80%	Basket/U Lift - 200%	At Angle Beta - 140%	At Angle Beta - 100%
Violet	1000	800	2000	1400	1000
Green	2000	1600	4000	2800	2000
Yellow	3000	2400	6000	4200	3000
Grey	4000	3200	8000	5600	4000
Red	5000	4000	10000	7000	5000
Brown	6000	4800	12000	8400	6000
Blue	8000	6400	16000	11200	8000
Orange	10000	8000	20000	14000	10000
Orange	12000	9600	24000	16800	12000
Orange (Sideseam)	15000	12000	30000	21000	15000
Orange (Sideseam)	20000	16000	40000	28000	20000
Orange (Sideseam)	25000	20000	50000	35000	25000
Orange (Sideseam)	125000	100000	250000	175000	125000

Special Round Slings

Special Round Sling is made of Ultra High Molecular Weight Polyethylene (UHMWP) yarn covered by durable nylon cover to make high performance lifting round slings. While designed Special Round Sling, our goal was lightest lifting gear with higher breaking strength of wire rope. We used our long experience of designed and manufacturing know-how's to make Special Round Sling with low elongation while it is stronger than wire rope with less than 10% weight of wire rope. Low elongation Special Round Sling makes lifting job much easier and safer. Low elongation enables very lash back. Also, Special Round Sling is very stable when used with hook, and you can avoid rotating problem of wire rope slings.

MARK SPECIFICATIONS
SWL (Safe Working Load)(KG)	Working Load Limits					Safety Factor 7 : 1 Breaking Strength (KG)
	Vertical	Choker	45°	60°	Basket

1,000	1,000	800	1,400	1,000	2,000	7,000
2,000	2,000	1,600	2,800	2,000	4,000	14,000
3,000	3,000	2,400	4,200	3,000	6,000	21,000
4,000	4,000	3,200	5,600	4,000	8,000	28,000
5,000	5,000	4,000	7,000	5,000	10,000	35,000
6,000	6,000	4,800	8,400	6,000	12,000	42,000
8,000	8,000	6,400	11,200	8,000	16,000	56,000
10,000	10,000	8,000	14,000	10,000	20,000	70,000
15,000	15,000	12,000	21,000	15,000	30,000	105,000
20,000	20,000	16,000	28,000	20,000	40,000	140,000
25,000	25,000	20,000	35,000	25,000	50,000	175,000
30,000	30,000	24,000	42,000	30,000	60,000	210,000
35,000	35,000	28,000	49,000	35,000	70,000	245,000
40,000	40,000	32,000	56,000	40,000	80,000	280,000

Special ROUND SPECIFICATIONS
SWL (Safe Working Load)(KG)	Working Load Limits					Safety Factor 6 : 1 Breaking Strength (KG)
	Vertical	Choker	45°	60°	Basket

1,000	1,000	800	1,400	1,000	2,000	6,000
2,000	2,000	1,600	2,800	2,000	4,000	12,000
3,000	3,000	2,400	4,200	3,000	6,000	18,000
4,000	4,000	3,200	5,600	4,000	8,000	24,000
5,000	5,000	4,000	7,000	5,000	10,000	30,000
6,000	6,000	4,800	8,400	6,000	12,000	36,000
8,000	8,000	6,400	11,200	8,000	16,000	48,000
10,000	10,000	8,000	14,000	10,000	20,000	60,000
15,000	15,000	12,000	21,000	15,000	30,000	90,000
20,000	20,000	16,000	28,000	20,000	40,000	120,000
25,000	25,000	20,000	35,000	25,000	50,000	150,000
30,000	30,000	24,000	42,000	30,000	60,000	180,000
35,000	35,000	28,000	49,000	35,000	70,000	210,000
40,000	40,000	32,000	56,000	40,000	80,000	240,000

Comparison of Special Round Sling and Wire Rope Sling
	Special Round Sling	Steel Wire Rope Sling
Weight	1/10 of wire rope of same breaking strength. Light weight enables easy installing and handling of sling, and higher productivity of lifting job.	Because of heavy weight, it's very difficult to move and install the slings. Heavy wire rope sling can cause back pain of the users.
Stability	Do not damage the material to be lifted. Positioning is fast and easy. Can tighten up the material to avoid slip while lifting the products.	Can hurt the material to be lifted. Positioning is slow and difficult.
Durability	Durable against chemical contacts. Because of the flexibility, its bending ratio can be far smaller.	Easy to get rusted against acid or alkali. Because of stiffness, broken wire can occur unless extra care is taken.
Storability	Only small storage space is required because of its flexibility.	Large and dry storage space is required.
Economical Value	High initial investment cost. However, higher productivity, longer service life, easier handling and storage result in low total operating costs.	Low initial cost. However, more manpower and heavier equipments to move, install, and lift are required. Total operating cost is high.

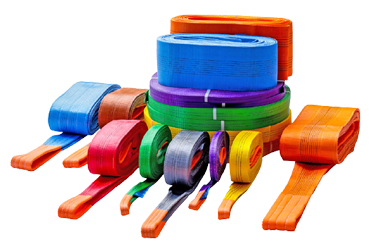

Polyester Flat Webbing Slings

Features

Manufactured to EN 1492-1 & ASME B30.9 (Flat Slings) & EN 1492-2
Highly customizable depending on client requirements
SWL from 500kg to 300 tons, EWL from 50cm to 100 Meters
ISO 9001 certified production process with stringent quality control procedures
Large stock ready to be delivered within short delivery time

Webbing slings are usually made from polyester and are designed to lift heavy loads. Webbing slings are flexible, lightweight and have a wide bearing surface, which helps protect the load you are lifting. Webbing slings are the most popular type of slings, and their stretchy characteristics help minimise shock loading problems. You'll more than likely find polyester webbing slings in the maintenance department of every manufacturing environment.

CAPACITY CHART in KGS for 1-PLY and 2-PLY FLAT POLYESTER WEBBING SLINGS

		Straight Lift - 100%		Choker Lift - 80%		Basket/U Lift - 200%		At Angle Beta - 140%		At Angle Beta - 100%
Color Code	Width in Inches	1-PLY	2-PLY	1-PLY	2-PLY	1-PLY	2-PLY	1-PLY	2-PLY	1-PLY	2-PLY
Violet	1	500	1000	400	800	1000	2000	700	1400	500	1000
Green	2	1000	2000	800	1600	2000	4000	1400	2800	1000	2000
Yellow	3	1500	3000	1200	2400	3000	6000	2100	4200	1500	3000
Grey	4	2000	4000	1600	3200	4000	8000	2800	5600	2000	4000
Red	5	2500	5000	2000	4000	5000	10000	3500	7000	2500	5000
Brown	6	3000	6000	2400	4800	6000	12000	4200	8400	3000	6000
Blue	8	4000	8000	3200	6400	8000	16000	5600	11200	4000	8000
Orange	10	5000	10000	4000	8000	10000	20000	7000	14000	5000	10000
Orange	12	6000	12000	4800	9600	12000	24000	8400	16800	6000	12000

CAPACITY CHART in KGS for 3-PLY and 4-PLY FLAT POLYESTER WEBBING SLINGS

		Straight Lift - 100%		Choker Lift - 80%		Basket/U Lift - 200%		At Angle Beta - 140%		At Angle Beta - 100%
Color Code	Width in Inches	3-PLY	4-PLY	3-PLY	4-PLY	3-PLY	4-PLY	3-PLY	4-PLY	3-PLY	4-PLY
Violet	1	1500	2000	1200	1600	3000	4000	2100	2800	1500	2000
Green	2	3000	4000	2400	3200	6000	8000	4200	5600	3000	4000
Yellow	3	4500	6000	3600	4800	9000	12000	6300	8400	4500	6000
Grey	4	6000	8000	4800	6400	12000	16000	8400	11200	6000	8000
Red	5	7500	10000	6000	8000	15000	20000	10500	14000	7500	10000
Brown	6	9000	12000	7200	9600	18000	24000	12600	16800	9000	12000
Blue	8	12000	16000	9600	12800	24000	32000	16800	22400	12000	16000
Orange	10	15000	20000	12000	16000	30000	40000	21000	28000	15000	20000
Orange	12	18000	24000	14400	19200	36000	48000	25200	33600	18000	24000

Special Purpose Slings

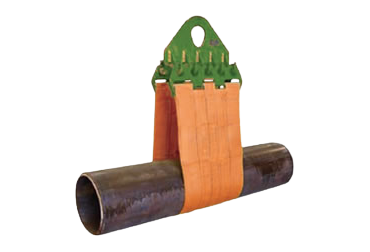

Pipe Lowering Belt

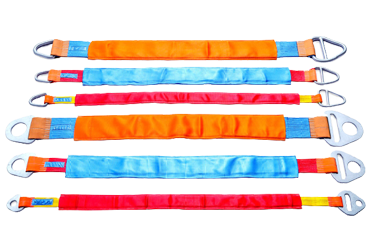

Round & Flat D & DP Webbing Sling

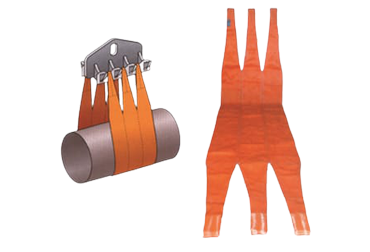

Pipe laying sling

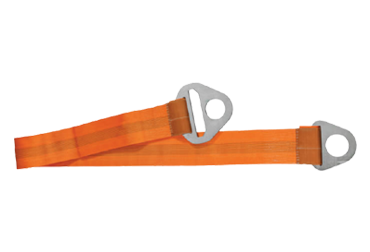

Webbing sling with Flat D & DP Fitting

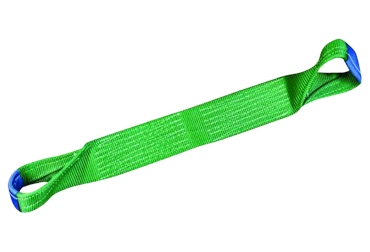

Extra Wide Webbing Sling for wide-bodied loads

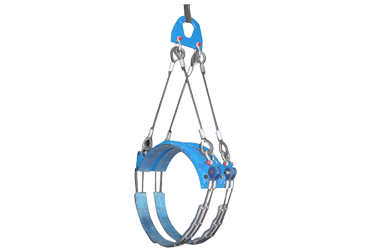

Steel Lined Choker Belt

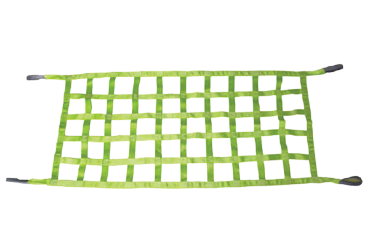

Cargo Net (Customized Mesh Size)

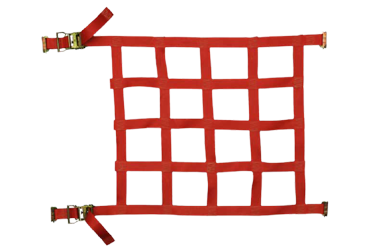

Load Securing Net With Ratchet

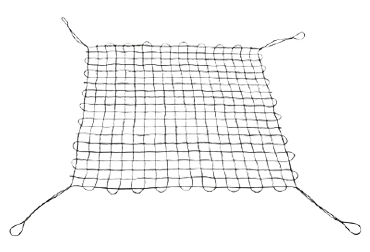

Wire Rope Net (Customized Mesh Size)

We offer both standard and customized solutions for Round Sling, Endless Round Sling, Polyester Round Sling. Serving to Oil & Gas, Marine, Port, Ship Management, Construction, Transportation,Steel, Industrial and EPC Contractors. We are serving Worldwide Clients based in Dubai, United Arab Emirates UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Iraq, Kurdistan, Yemen, Lebanon, Jordan, Sudan, Egypt, Nigeria, Algeria, Angola, Kenya, Tanzania, South Africa, Morocco, Libya, Kazakhstan, Armenia, Azerbaijan, Turkmenistan, Tunisia, Ghana, Tanzania, Uzbekistan. We are Looking forward to fulfilling your expectations with the best of our product range. Our Excellent Logistics setup supports shipping of goods to major Cities Such As Dubai, Abu Dhabi, Al Ain, Sharjah, Ajman, Ras Al Khaimah, Fujairah, Doha, Muscat, Kuwait, Riyadh, Jeddah, Dhahran, Jubail And Yanbu, Baghdad, Basra, Mosul, Erbil, Sulaymaniyah, Manama, Beirut, Amman, Sanaa, Aden, Mukalla, Khartoum, Abuja, Algiers, Luanda, Nairobi, Dar es salaam, cape town, Durban, Johannesburg, Rabat, Tripoli, Benghazi, Misrata, Ashgabat, Almaty, Aktau, Yerevan, Baku, Accra, Lagos, Port Harcourt, Port Sudan, Tunis, Port of Mombasa, Dodoma, Dar Es Salaam, Aktobe, Tashkent, Balkanabat, Turkmenbashi, Kirkuk. We will be pleased to serve your requirements with the best of our products.
